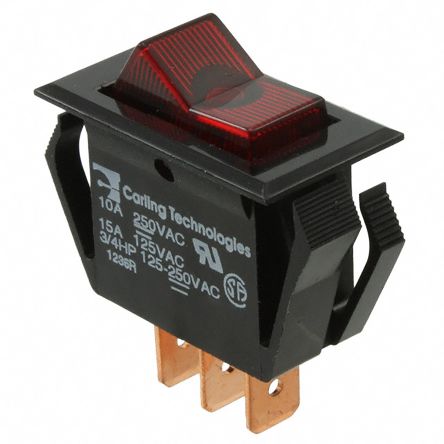

Carling Technologies Illuminated Single Pole Double Throw (SPDT), Latching Rocker Switch Panel Mount [LTA201-TR-B/125N]; 881-1558
0₫
Mã kho: 8811558
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Contact Configuration | Single Pole Double Throw (SPDT) |
Switch Operation | On-None-Off |
Panel Cut Out Width | 13.97mm |
Panel Cut Out Height | 28.57mm |
Contact Current Rating | 15 A |
Illuminated | Yes |
Actuator Colour | Red |
Mounting Type | Panel Mount |
Terminal Type | Quick Connect |
Actuator Shape | Rectangular |
Case Material | Nylon |
AC Voltage Rating | 250V |
Minimum Operating Temperature | -40°C |
Operating Temperature Range | -40 → +85°C |
Mechanical Life | 100000Operations |
Panel Cut Out Size | 28.57 x 13.97mm |
Maximum Operating Temperature | +85°C |
