![Carling Technologies LRGSCK611-R-S-B-0/125N 8811520](http://nguyenxuong.com/cdn/shop/products/R8811520-01_444x444.jpg?v=1594045501)

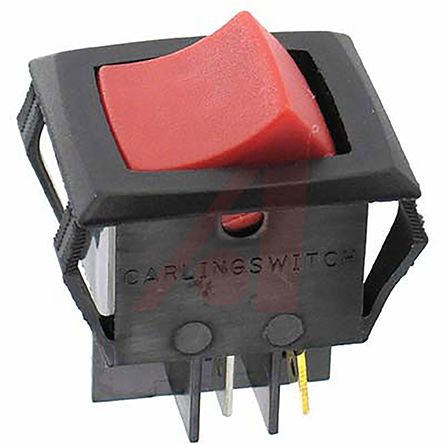

Carling Technologies Illuminated Double Pole Single Throw (DPST), Latching Rocker Switch Panel Mount [LRGSCK611-R-S-B-0/125N]; 881-1520
0₫
Mã kho: 8811520
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Contact Configuration | Double Pole Single Throw (DPST) |
Switch Operation | On-None-Off |
Panel Cut Out Width | 30mm |
Panel Cut Out Height | 22mm |
Contact Current Rating | 20 A |
Illuminated | Yes |
Actuator Colour | Red |
Mounting Type | Panel Mount |
Terminal Type | Quick Connect |
Actuator Shape | Rectangular |
Case Material | Nylon |
Mechanical Life | 100000Operations |
Contact Material | Silver |
Minimum Operating Temperature | -40°C |
Panel Cut Out Size | 22 x 30mm |
Operating Temperature Range | -40 → +85°C |
Maximum Operating Temperature | +85°C |
AC Voltage Rating | 250V |
