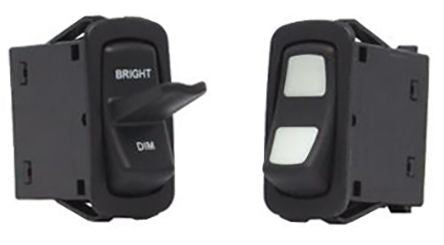

Carling Technologies Illuminated Single Pole Double Throw (SPDT), On-Off-On Rocker Switch Panel Mount [L16E3C661-A1100-000]; 881-1467
0₫
Mã kho: 8811467
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Double Throw (SPDT) |
| Switch Operation | On-Off-On |
| Panel Cut Out Width | 22.02mm |
| Panel Cut Out Height | 44.04mm |
| Contact Current Rating | 15 A |
| Illuminated | Yes |
| Actuator Colour | Black |
| Mounting Type | Panel Mount |
| IP Rating | IP67 |
| Terminal Type | Quick Connect |
| Actuator Shape | Rectangular |
| Mechanical Life | 250000Operations |
| Operating Temperature Range | -40 → +85°C |
| Maximum Operating Temperature | +85°C |
| Case Material | Nylon 66 |
| Contact Material | Gold, Silver Nickel, Silver Tin Oxide |
| DC Voltage Rating | 12V |
| Contact Resistance | 10mΩ |
| Minimum Operating Temperature | -40°C |
| Panel Cut Out Size | 44.04 x 22.02mm |
