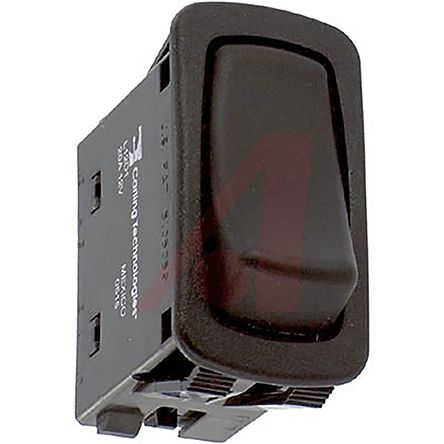

Carling Technologies Single Pole Single Throw (SPST), Momentary Rocker Switch Panel Mount [L12D1S001-AZZ00-000]; 881-1451
0₫
Mã kho: 8811451
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Contact Configuration | Single Pole Single Throw (SPST) |
Switch Operation | (On)-None-Off |
Panel Cut Out Width | 22.02mm |
Panel Cut Out Height | 44.04mm |
Contact Current Rating | 20 A |
Illuminated | No |
Actuator Colour | Black |
Mounting Type | Panel Mount |
IP Rating | IP67 |
Terminal Type | Quick Connect |
Actuator Shape | Rectangular |
Maximum Operating Temperature | +85°C |
Mechanical Life | 250000Operations |
Operating Temperature Range | -40 → +85°C |
Panel Cut Out Size | 44.04 x 22.02mm |
Contact Resistance | 10mΩ |
Minimum Operating Temperature | -40°C |
DC Voltage Rating | 12V |
Contact Material | Gold, Silver Nickel, Silver Tin Oxide |
Case Material | Nylon 66 |
