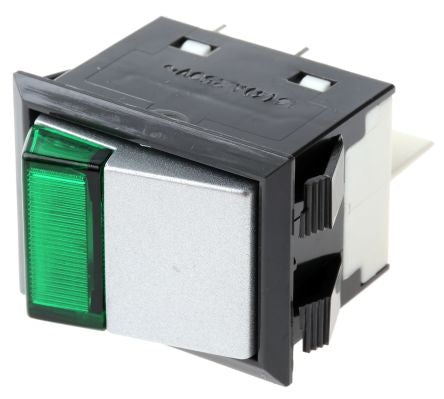

APEM Illuminated SPST Rocker Switch Panel Mount [H11S37]; 664-935
by APEM
0₫
Mã kho: 664935
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | SPST |
| Panel Cut Out Width | 23.55mm |
| Panel Cut Out Height | 34.55mm |
| Contact Current Rating | 16 A @ 250 V ac |
| Illuminated | Yes |
| Actuator Colour | Green |
| Mounting Type | Panel Mount |
| Terminal Type | Quick Connect |
| Actuator Shape | Rectangular |
| Contact Material | Silver Cadmium Alloy |
| Case Material | PET |
| AC Voltage Rating | 250V |
| Mechanical Life | 100000Operations |
| Operating Temperature Range | Maximum of +85°C |
| Panel Cut Out Size | 34.55 x 23.55mm |
| Maximum Operating Temperature | +85°C |
