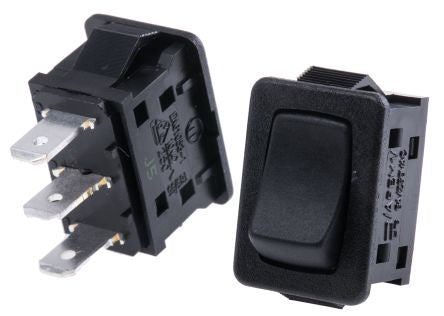

APEM Single Pole Double Throw (SPDT), Latching Rocker Switch Panel Mount [FMC68A2200000]; 499-4599
by APEM
0₫
Mã kho: 4994599
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Contact Configuration | Single Pole Double Throw (SPDT) |
Switch Operation | On-On |
Panel Cut Out Width | 12.9mm |
Panel Cut Out Height | 19.4mm |
Contact Current Rating | 10 A @ 250 V ac |
Illuminated | No |
Actuator Colour | Black |
Mounting Type | Panel Mount |
Terminal Type | Quick Connect |
Actuator Shape | Rectangular |
Mechanical Life | 30000Operations |
Maximum Operating Temperature | +85°C |
Operating Temperature Range | -20 → +85°C |
AC Voltage Rating | 125 V, 250 V |
Contact Material | Silver |
Minimum Operating Temperature | -20°C |
Contact Resistance | 20mΩ |
Panel Cut Out Size | 19.4 x 12.9mm |
