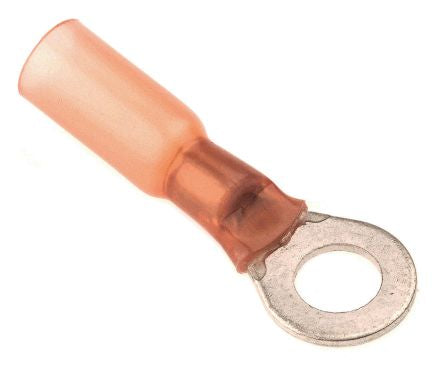

TE Connectivity DuraSeal Series Insulated Tin Plated Crimp Ring Terminal, M5 Stud Size, 0.5mm² to 1mm², 22AWG [DR-2-50]; 465-643
0₫
Mã kho: 465643
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | DuraSeal |
| Insulation | Insulated |
| Insulation Material | Nylon |
| Inner Ring Diameter | 5.3mm |
| Outer Ring Diameter | 10mm |
| Maximum Wire Size mm² | 1mm² |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size AWG | 18AWG |
| Minimum Wire Size AWG | 22AWG |
| Stud Size | M5 |
| Colour | Red |
| Contact Material | Copper Alloy |
| Contact Plating | Tin |
| Thickness | 1.4mm |
| Overall Length | 34mm |
