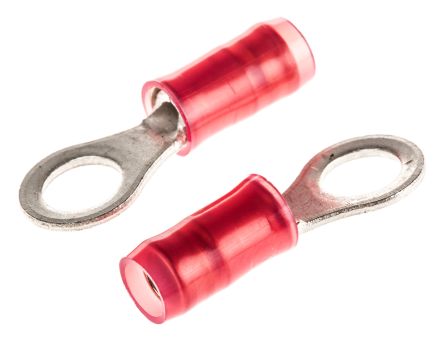

TE Connectivity PIDG Series Insulated Crimp Ring Terminal, M4.5 Stud Size, 0.26mm² to 1.65mm² Wire Size, Red [36153]; 170-9432
0₫
Mã kho: 1709432
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | PIDG |
| Insulation | Insulated |
| Outer Ring Diameter | 7.92mm |
| Inner Ring Diameter | 5mm |
| Minimum Wire Size mm² | 0.26mm² |
| Maximum Wire Size mm² | 1.65mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Stud Size | M4.5 |
| Colour | Red |
| Contact Material | Copper |
| Contact Plating | Tin |
| Thickness | 0.79mm |
| Overall Length | 21.44mm |
