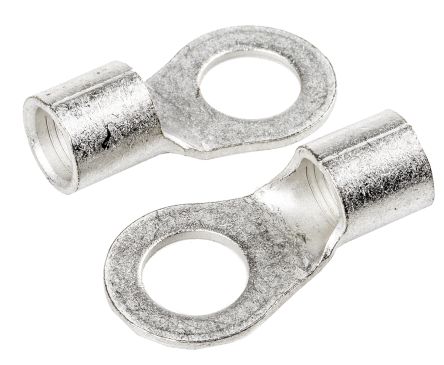

TE Connectivity Solistrand Series Uninsulated Crimp Ring Terminal, M12 Stud Size, 26.7mm² to 42.4mm² Wire Size [35185]; 373-500
0₫
Mã kho: 373500
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Series | SOLISTRAND |
Insulation | Uninsulated |
Inner Ring Diameter | 13.08mm |
Outer Ring Diameter | 22.61mm |
Minimum Wire Size mm² | 26.7mm² |
Maximum Wire Size mm² | 42.4mm² |
Minimum Wire Size AWG | 2AWG |
Maximum Wire Size AWG | 2AWG |
Stud Size | M12 |
Contact Plating | Tin |
Contact Material | Copper |
Thickness | 1.78mm |
Overall Length | 42.09mm |
