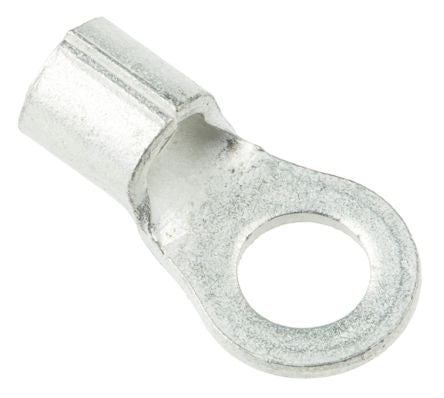

TE Connectivity Solistrand Series Uninsulated Crimp Ring Terminal, M3.5 Stud Size, 1mm² to 2.6mm² Wire Size [34120]; 373-190
0₫
Mã kho: 373190
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | SOLISTRAND |
| Insulation | Uninsulated |
| Inner Ring Diameter | 3.68mm |
| Outer Ring Diameter | 6.35mm |
| Maximum Wire Size mm² | 2.6mm² |
| Minimum Wire Size mm² | 1mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Stud Size | M3.5 |
| Contact Plating | Tin |
| Contact Material | Copper |
| Thickness | 0.79mm |
| Overall Length | 12.19mm |
