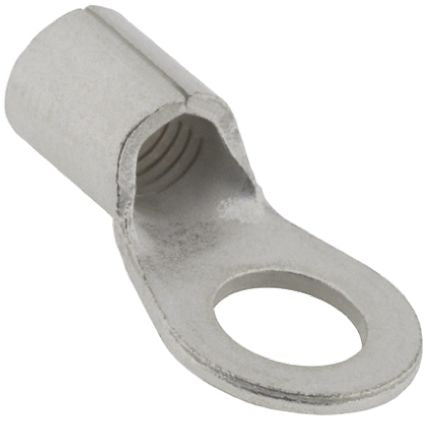

TE Connectivity Solistrand Series Uninsulated Crimp Ring Terminal, M8 (5/16) Stud Size, 16.8mm² to 26.7mm² Wire Size [33115]; 164-4789
0₫
Mã kho: 1644789
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | SOLISTRAND |
| Insulation | Uninsulated |
| Outer Ring Diameter | 15.88mm |
| Inner Ring Diameter | 8.33mm |
| Minimum Wire Size mm² | 16.8mm² |
| Maximum Wire Size mm² | 26.7mm² |
| Maximum Wire Size AWG | 4AWG |
| Minimum Wire Size AWG | 4AWG |
| Stud Size | M8 (5/16) |
| Contact Plating | Tin |
| Contact Material | Copper |
| Thickness | 1.78mm |
| Overall Length | 33.63mm |
