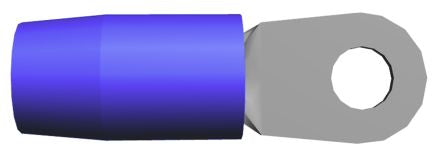

TE Connectivity TERMINYL Series Insulated Crimp Ring Terminal, 9.53mm Stud Size, 42.4mm² to 60.6mm² Wire Size, Blue [324057]; 164-2230
0₫
Mã kho: 1642230
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | TERMINYL |
| Insulation | Insulated |
| Insulation Material | Nylon |
| Outer Ring Diameter | 20.5mm |
| Inner Ring Diameter | 9.91mm |
| Maximum Wire Size mm² | 60.6mm² |
| Minimum Wire Size mm² | 42.4mm² |
| Maximum Wire Size AWG | 1/0AWG |
| Minimum Wire Size AWG | 1/0AWG |
| Stud Size | 9.53mm |
| Colour | Blue |
| Contact Material | Copper |
| Contact Plating | Tin |
| Thickness | 1.78mm |
| Overall Length | 61.62mm |
