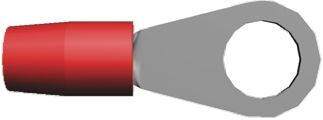

RING TERMINAL RED 8AWG 3/8 TERMINYL [324045]; 190-4053
0₫
Mã kho: 1904053
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | TERMINYL |
| Insulation | Insulated |
| Insulation Material | Nylon |
| Inner Ring Diameter | 9.91mm |
| Outer Ring Diameter | 14.91mm |
| Minimum Wire Size mm² | 6.6mm² |
| Maximum Wire Size mm² | 10.5mm² |
| Maximum Wire Size AWG | 8AWG |
| Minimum Wire Size AWG | 8AWG |
| Stud Size | M10 |
| Colour | Red |
| Contact Material | Copper |
| Contact Plating | Tin |
| Thickness | 1.02mm |
| Overall Length | 39.17mm |
