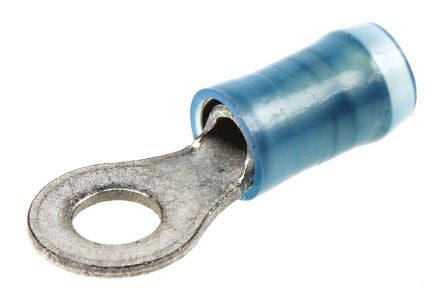

TE Connectivity PIDG Series Insulated Crimp Ring Terminal, M4 Stud Size, 1mm² to 2.6mm² Wire Size, Blue [320560]; 170-9444
0₫
Mã kho: 1709444
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | PIDG |
| Insulation | Insulated |
| Insulation Material | Nylon |
| Outer Ring Diameter | 8.71mm |
| Inner Ring Diameter | 4.17mm |
| Minimum Wire Size mm² | 1mm² |
| Maximum Wire Size mm² | 2.6mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Stud Size | M4 |
| Colour | Blue |
| Contact Material | Copper |
| Contact Plating | Tin |
| Overall Length | 21.82mm |
