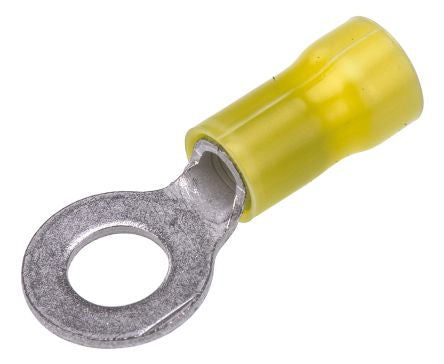

TE Connectivity PLASTI-GRIP Series Insulated Crimp Ring Terminal, M8 Stud Size, 3mm² to 6mm² Wire Size, Yellow [165035]; 161-4876
0₫
Mã kho: 1614876
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | PLASTI-GRIP |
| Insulation | Insulated |
| Insulation Material | Vinyl |
| Inner Ring Diameter | 6.7mm |
| Outer Ring Diameter | 12.7mm |
| Maximum Wire Size mm² | 6mm² |
| Minimum Wire Size mm² | 3mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 10AWG |
| Stud Size | M6 |
| Colour | Yellow |
| Contact Material | Copper |
| Contact Plating | Tin |
| Overall Length | 30.07mm |
