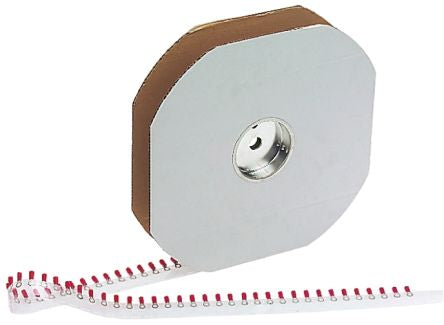

RS PRO 3130 Series Insulated Crimp Ring Terminal, M8 (5/16) Stud Size, 4mm² to 6mm² Wire Size, Yellow; 149-338
by RS PRO
0₫
Mã kho: 149338
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | 3130 |
| Insulation | Insulated |
| Insulation Material | Vinyl |
| Outer Ring Diameter | 15mm |
| Inner Ring Diameter | 8.4mm |
| Maximum Wire Size mm² | 6mm² |
| Minimum Wire Size mm² | 4mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 10AWG |
| Stud Size | M8 (5/16) |
| Colour | Yellow |
| Contact Material | Copper |
| Contact Plating | Tin |
| Thickness | 1mm |
| Overall Length | 34.2mm |
