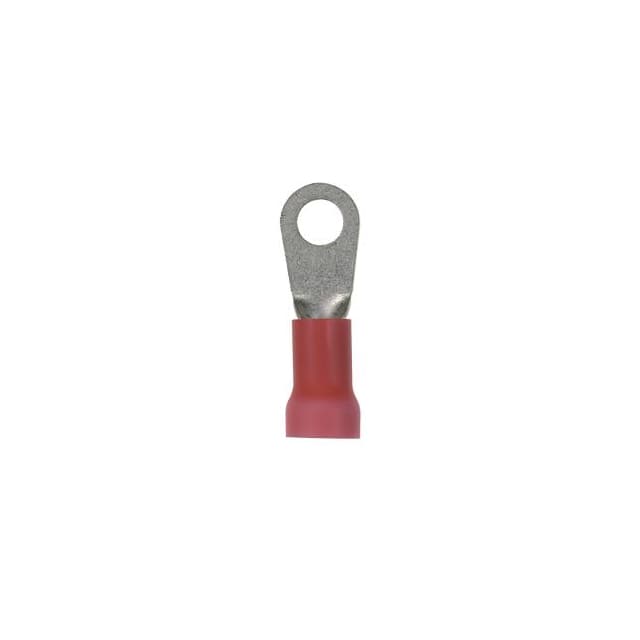

Wire Termination / Terminals Terminal Kits / Ring Terminals: Panduit PV8-12RX-XY
MÔ TẢ SẢN PHẨM
Ring Terminal, large wire, 8 AWG, 1/2" stud size, vinyl expanded insulation.
_THÔNG SỐ KỸ THUẬT:
| Note | PV8-12RX-XY replaces PV8-12RX-QY |
| Stud Hole Size (In.) | 13/25 |
| Stud Hole Size (mm) | 13.2 |
| Stud Size | 1/2" |
| Insulation Material | Vinyl |
| Maximum Copper Conductor Size (AWG SOL) | #8 |
| Maximum Copper Conductor Size (AWG STR) | #8 |
| Maximum Copper Conductor Size (AWG) | #8 |
| Maximum Wire Size (AWG) | #8 |
| Minimum Wire Size (AWG) | #8 |
| Minimum Copper Conductor Size (AWG SOL) | #8 |
| Minimum Copper Conductor Size (AWG STR) | #8 |
| Minimum Copper Conductor Size (AWG) | #8 |
| Wire Strip Length (In.) | 0.38 |
| Wire Strip Length (mm) | 9.5 |
| Standards Met | UL Listed 587H E52164 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Funnel |
| Barrel Length (In.) | 0.67 |
| Barrel Length (mm) | 16.9 |
| Flammability Rating | UL 94 V-0 |
| Insulation Diameter (In.) | 0.36 |
| Insulation Diameter (mm) | 9.1 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Wire Insulation Diameter (In.) | 0.36 |
| Maximum Wire Insulation Diameter (mm) | 9.1 |
| Outer Diameter (In.) | 0.36 |
| Outer Diameter (mm) | 9.1 |
| Sub Brand | Pan-term |
| Overall Length (In.) | 1.74 |
| Overall Length (mm) | 44.2 |
| Overall Width (In.) | 0.82 |
| Overall Width (mm) | 20.8 |
| Tongue Length (In.) | 1.08 |
| Tongue Length (mm) | 27.3 |
| Tongue Thickness (In.) | 0.04 |
| Tongue Thickness (mm) | 1 |
| Tongue Width (In.) | 0.82 |
| Tongue Width (mm) | 20.8 |
| Packaging Type | Bottle |
| Product Type | Loose Piece Ring Terminal |
| For Use With | CT-720 (CD-720PV8-2); CT-2600 (CD-2600-PV8) |
| Part Features | • Expanded wire entry designed to accommodate wire with a larger insulation thickness • Ring tongue design assures a secure connection in high vibration applications • Insulation support helps to prevent wire damage in bending applications • Internal barrel serrations assure good wire contact and maximum tensile strength |
