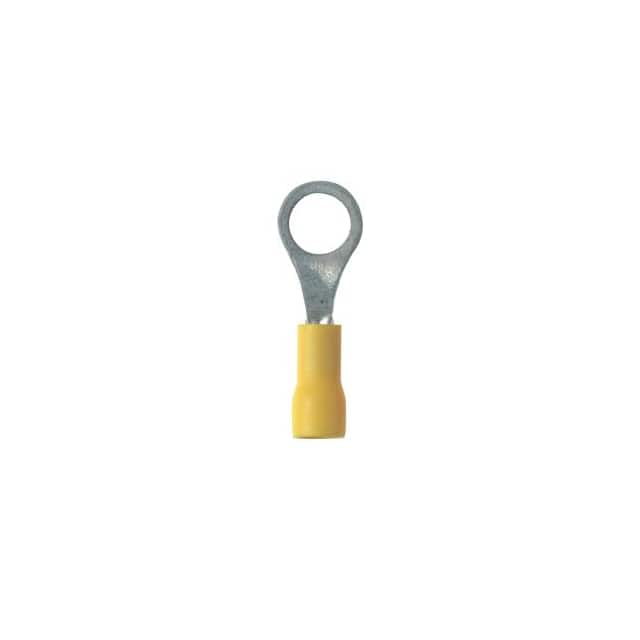

Panduit Ring Terminal, 26 – 22 AWG, #10 stud size, vinyl insulated, funnel entry, bulk package. [PV22-10R-MYY]; PAO377

Name: Panduit Ring Terminal, 26 – 22 AWG, #10 stud size, vinyl insulated, funnel entry, bulk package. [PV22-10R-MYY]; PAO377
Brand: Panduit
SKU: PAO377
Price: 2600.0 VND
Availability: InStock

by Panduit

2.600₫

(Giá chưa VAT).

Mã kho: PAO377

Mã nhà sản xuất: PV22-10R-MYY

Đơn vị tính: PC

Quy cách đóng gói: 1,000

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Wire Termination / Terminals Terminal Kits / Ring Terminals: Panduit PV22-10R-MYY

MÔ TẢ SẢN PHẨM

Ring Terminal, 26 – 22 AWG, #10 stud size, vinyl insulated, funnel entry, bulk package.

_THÔNG SỐ KỸ THUẬT:

Stud Hole Size (mm)	5
Insulation Material	Vinyl
Maximum Wire Size (AWG)	#22
Minimum Wire Size (AWG)	#26
Wire Strip Length (In.)	0.18
Wire Strip Length (mm)	4.8
Base Material	Copper
Finish/Coating	Tinned
Seam Type	Brazed
Sub Brand	Pan-Term
Overall Length (In.)	0.78
Overall Length (mm)	19.8
Overall Width (In.)	0.32
Overall Width (mm)	8.1
Part Features	• Ring tongue design assures a secure connection in high vibration applications • Insulation support helps to prevent wire damage in bending applications • Internal barrel serrations assure good wire contact and maximum tensile strength
