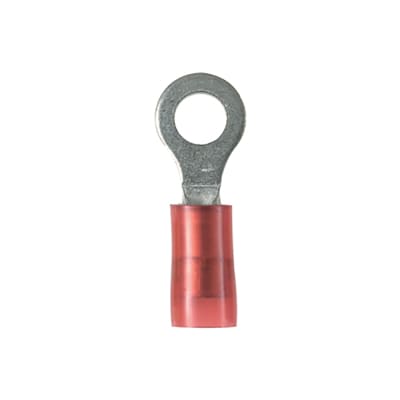

Wire Termination / Terminals Terminal Kits / Ring Terminals: Panduit PN18-38R-M
MÔ TẢ SẢN PHẨM
Ring Terminal, 22 – 18 AWG, 3/8" stud size, nylon insulated, bulk package.
HƯỚNG DẪN MUA HÀNG qua Điện thoại / Email
Website đang trong giai đoạn xây dựng. Thông tin liên hệ: tổng đài 0898.332.898 hoặc E-mail: Sales@nguyenxuong.com
HƯỚNG DẪN MUA HÀNG qua Điện thoại / Email
. Thông tin liên hệ: tổng đài 0898.332.898 hoặc E-mail: Sales@nguyenxuong.com
Wire Termination / Terminals Terminal Kits / Ring Terminals: Panduit PN18-38R-M
Ring Terminal, 22 – 18 AWG, 3/8" stud size, nylon insulated, bulk package.
Stud Hole Size (In.) | 39/100 |
Stud Hole Size (mm) | 9.9 |
Stud Size | 3/8" |
Insulation Material | Nylon |
Maximum Copper Conductor Size (AWG SOL) | 18 |
Maximum Copper Conductor Size (AWG STR) | 18 |
Maximum Copper Conductor Size (AWG) | 18 |
Maximum Wire Size (AWG) | #18 |
Minimum Wire Size (AWG) | #22 |
Minimum Copper Conductor Size (AWG SOL) | #22 |
Minimum Copper Conductor Size (AWG STR) | #22 |
Minimum Copper Conductor Size (AWG) | #22 |
Maximum Metric Conductor Size (mm²) | 1 |
Minimum Metric Conductor Size (mm²) | 0.5 |
Wire Strip Length (In.) | 0.22 |
Wire Strip Length (mm) | 5.6 |
Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
Base Material | Copper |
Maximum Voltage (V) | 600 |
Maximum Voltage (kV) | 0.6 |
Finish/Coating | Tin-Plated |
Color Code | Red |
Barrel Type | Grip Sleeve |
Barrel Length (In.) | 0.57 |
Barrel Length (mm) | 14.5 |
Flammability Rating | UL 94 V-2/UL 94 HB |
Insulation Diameter (In.) | 0.15 |
Insulation Diameter (mm) | 3.8 |
Maximum Operating Temperature (°C) | 105 |
Maximum Operating Temperature (°F) | 221 |
Maximum Wire Insulation Diameter (In.) | 0.15 |
Maximum Wire Insulation Diameter (mm) | 3.8 |
Minimum Wire Insulation Diameter (In.) | 0.15 |
Minimum Wire Insulation Diameter (mm) | 3.8 |
Sub Brand | Pan-Term |
Overall Length (In.) | 1.14 |
Overall Length (mm) | 29 |
Overall Width (In.) | 0.53 |
Overall Width (mm) | 13.5 |
Tongue Length (In.) | 0.57 |
Tongue Length (mm) | 14.5 |
Tongue Thickness (In.) | 0.03 |
Tongue Thickness (mm) | 0.8 |
Tongue Width (In.) | 0.53 |
Tongue Width (mm) | 13.5 |
Packaging Type | Box |
Product Type | Ring Terminal |
For Use With | CT-1550, CT-1551, CT-2500 W/CT-2550CH |
Part Features | • Ring tongue design assures a secure connection in high vibration applications • Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications • Internal barrel serrations assure good wire contact and maximum tensile strength |
