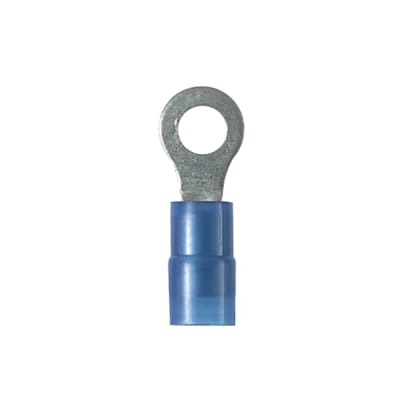

Wire Termination / Terminals Terminal Kits / Ring Terminals: Panduit PN14-56R-M
MÔ TẢ SẢN PHẨM
Ring Terminal, 18 – 14 AWG, 5/16" stud size, nylon insulated, bulk package.
_THÔNG SỐ KỸ THUẬT:
| Stud Hole Size (In.) | 17/50 |
| Stud Hole Size (mm) | 8.6 |
| Stud Size | 5/16" |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | #14 |
| Maximum Copper Conductor Size (AWG STR) | #14 |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #18 |
| Minimum Copper Conductor Size (AWG SOL) | #18 |
| Minimum Copper Conductor Size (AWG STR) | #18 |
| Minimum Copper Conductor Size (AWG) | #18 |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1 |
| Wire Strip Length (In.) | 0.21 |
| Wire Strip Length (mm) | 5.3 |
| Standards Met | CSA Certified, C22.2 No. 65; UL Listed, UL 486A, UL 486B |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Barrel Type | Grip Sleeve |
| Barrel Length (In.) | 0.52 |
| Barrel Length (mm) | 13.2 |
| CSA Temperature Rating (°C) | 105 |
| Flammability Rating | UL 94 V-2/UL 94 HB |
| Insulation Diameter (In.) | 0.16 |
| Insulation Diameter (mm) | 4.1 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Wire Insulation Diameter (In.) | 0.16 |
| Maximum Wire Insulation Diameter (mm) | 4.1 |
| Minimum Wire Insulation Diameter (In.) | 0.08 |
| Minimum Wire Insulation Diameter (mm) | 2 |
| Sub Brand | Pan-Term |
| Overall Length (In.) | 1.05 |
| Overall Length (mm) | 26.7 |
| Overall Width (In.) | 0.46 |
| Overall Width (mm) | 11.7 |
| Tongue Length (In.) | 0.52 |
| Tongue Length (mm) | 13.2 |
| Tongue Width (In.) | 0.46 |
| Tongue Width (mm) | 11.7 |
| Packaging Type | Box |
| Product Type | Loose Piece Ring Terminal |
| For Use With | CT-550, CT-1550, CT-1551,CT-460, CT-400 |
| Part Features | • Ring tongue design assures a secure connection in high vibration applications • Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications • Internal barrel serrations assure good wire contact and maximum tensile strength |
