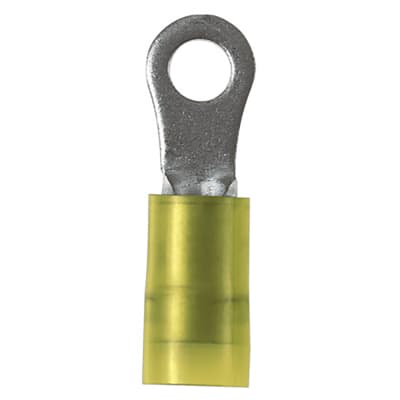

Wire Termination / Terminals Terminal Kits / Ring Terminals: Panduit PN12-6HDR-D
MÔ TẢ SẢN PHẨM
Ring Terminal, 16-12 AWG, #6 stud size, heavy duty, nylon insulated.
_THÔNG SỐ KỸ THUẬT:
| Stud Hole Size (In.) | 3/20 |
| Stud Hole Size (mm) | 3.8 |
| Stud Size | #6 |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG SOL) | 12 |
| Maximum Copper Conductor Size (AWG STR) | 12 |
| Maximum Copper Conductor Size (AWG) | 12 |
| Maximum Wire Size (AWG) | #12 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG SOL) | #16 |
| Minimum Copper Conductor Size (AWG STR) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 2 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Standards Met | UL Listed 587H E52164; CSA Certified LR31212 |
| Base Material | Copper |
| Maximum Voltage (V) | 600 |
| Maximum Voltage (kV) | 0.6 |
| Finish/Coating | Tin-Plated |
| Color Code | Yellow |
| Barrel Type | Grip Sleeve |
| Barrel Length (In.) | 0.53 |
| Barrel Length (mm) | 13.5 |
| CSA Temperature Rating (°C) | 105 |
| Flammability Rating | UL 94 V-2/UL 94 HB |
| Insulation Diameter (In.) | 0.23 |
| Insulation Diameter (mm) | 5.8 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Maximum Wire Insulation Diameter (In.) | 0.23 |
| Maximum Wire Insulation Diameter (mm) | 5.8 |
| Minimum Wire Insulation Diameter (In.) | 0.23 |
| Minimum Wire Insulation Diameter (mm) | 5.8 |
| Sub Brand | Pan-Term |
| Overall Length (In.) | 1.06 |
| Overall Length (mm) | 26.9 |
| Overall Width (In.) | 0.31 |
| Overall Width (mm) | 7.9 |
| Tongue Length (In.) | 0.53 |
| Tongue Length (mm) | 13.5 |
| Tongue Thickness (In.) | 0.05 |
| Tongue Thickness (mm) | 1.3 |
| Tongue Width (In.) | 0.31 |
| Tongue Width (mm) | 7.9 |
| Packaging Type | Box |
| Product Type | Ring Terminal |
| Part Features | • Manufactured from stock 56% thicker than a standard #16 – #14 AWG terminal for use in heavy-duty applications • Insulation housing is marked with “HDR” to signify heavy-duty ring • Ring tongue design assures a secure connection in high vibration applications • Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications • Internal barrel serrations assure good wire contact and maximum tensile strength |
