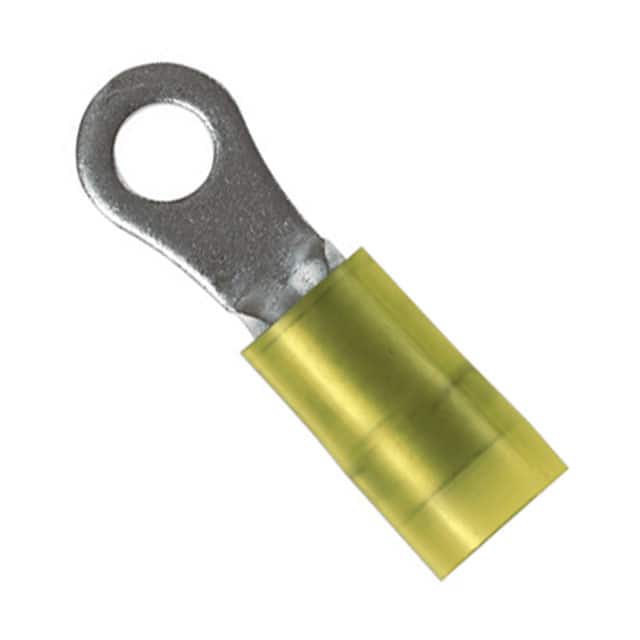

Panduit Heavy Duty Ring Terminal, nylon insulated, metal insulation grip sleeve, 16 – 12 AWG wire range, .05 stock and #6 stud size. [PN12-6HDR-2K]; PAO042

Name: Panduit Heavy Duty Ring Terminal, nylon insulated, metal insulation grip sleeve, 16 – 12 AWG wire range, .05 stock and #6 stud size. [PN12-6HDR-2K]; PAO042
Brand: Panduit
SKU: PAO042
Price: 12500.0 VND
Availability: InStock

by Panduit

12.500₫

(Giá chưa VAT).

Mã kho: PAO042

Mã nhà sản xuất: PN12-6HDR-2K

Quy cách đóng gói: 2,000

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Wire Termination / Terminals Terminal Kits / Ring Terminals: Panduit PN12-6HDR-2K

MÔ TẢ SẢN PHẨM

Heavy Duty Ring Terminal, nylon insulated, metal insulation grip sleeve, 16 – 12 AWG wire range, .05 stock and #6 stud size.

_THÔNG SỐ KỸ THUẬT:

Stud Hole Size (In.)	3/20
Stud Hole Size (mm)	3.8
Stud Size	#6
Insulation Material	Nylon
Maximum Copper Conductor Size (AWG SOL)	12
Maximum Copper Conductor Size (AWG STR)	12
Maximum Copper Conductor Size (AWG)	12
Maximum Wire Size (AWG)	#12
Minimum Wire Size (AWG)	#16
Minimum Copper Conductor Size (AWG SOL)	#16
Minimum Copper Conductor Size (AWG STR)	#16
Minimum Copper Conductor Size (AWG)	#16
Maximum Metric Conductor Size (mm²)	4
Minimum Metric Conductor Size (mm²)	1.5
Wire Strip Length (In.)	0.28
Wire Strip Length (mm)	7.1
Standards Met	UL Listed 587H E52164; CSA Certified LR31212
Base Material	Copper
Maximum Voltage (V)	600
Maximum Voltage (kV)	0.6
Finish/Coating	Tin-Plated
Color Code	Yellow
Barrel Type	Grip Sleeve
Barrel Length (In.)	0.51
Barrel Length (mm)	13
CSA Temperature Rating (°C)	105
Flammability Rating	UL 94 V-2/UL 94 HB, UL 486A/B
Insulation Diameter (In.)	0.23
Insulation Diameter (mm)	5.8
Maximum Operating Temperature (°C)	105
Maximum Operating Temperature (°F)	221
Maximum Wire Insulation Diameter (In.)	0.23
Maximum Wire Insulation Diameter (mm)	5.8
Minimum Wire Insulation Diameter (In.)	0.13
Minimum Wire Insulation Diameter (mm)	3.3
Sub Brand	Reel Smart
Overall Length (In.)	1.02
Overall Length (mm)	25.9
Overall Width (In.)	0.31
Overall Width (mm)	7.9
Tongue Length (In.)	0.51
Tongue Length (mm)	13
Tongue Thickness (In.)	0.05
Tongue Thickness (mm)	1.3
Tongue Width (In.)	0.31
Tongue Width (mm)	7.9
Packaging Type	Reel
Product Type	Ring Terminal
For Use With	Heavy duty application
Part Features	• Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time • Manufactured from stock 56% thicker than a standard #16 – 14 AWG terminal for use in heavy duty application • Ring tongue design assures a secure connection in high vibration applications • Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications • Internal barrel serrations assure good wire contact and maximum tensile strength
