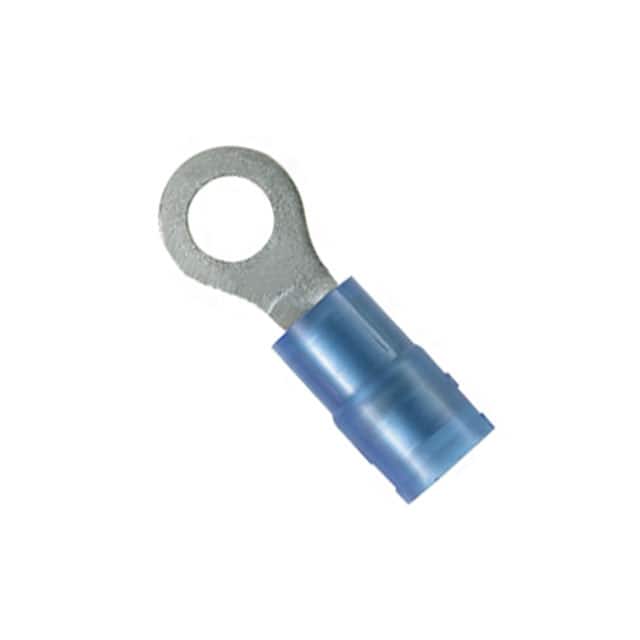

Panduit Reel-Fed Ring Terminal, 1.5 – 2.5mm² wire range, M3 stud size, nylon barrel insulated, funnel entry. [PMNF2-3R-3K]; PAO029

Name: Panduit Reel-Fed Ring Terminal, 1.5 – 2.5mm² wire range, M3 stud size, nylon barrel insulated, funnel entry. [PMNF2-3R-3K]; PAO029
Brand: Panduit
SKU: PAO029
Price: 10400.0 VND
Availability: InStock

by Panduit

10.400₫

(Giá chưa VAT).

Mã kho: PAO029

Mã nhà sản xuất: PMNF2-3R-3K

Đơn vị tính: BK

Quy cách đóng gói: 3,000

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Wire Termination / Terminals Terminal Kits / Ring Terminals: Panduit PMNF2-3R-3K

MÔ TẢ SẢN PHẨM

Reel-Fed Ring Terminal, 1.5 – 2.5mm² wire range, M3 stud size, nylon barrel insulated, funnel entry.

_THÔNG SỐ KỸ THUẬT:

Stud Hole Size (In.)	13/100
Stud Hole Size (mm)	3.3
Insulation Material	Nylon
Maximum Copper Conductor Size (AWG SOL)	NA
Maximum Copper Conductor Size (AWG STR)	14
Maximum Copper Conductor Size (AWG)	14
Maximum Wire Size (AWG)	#14
Minimum Wire Size (AWG)	#16
Minimum Copper Conductor Size (AWG SOL)	NA
Minimum Copper Conductor Size (AWG STR)	16
Minimum Copper Conductor Size (AWG)	16
Maximum Metric Conductor Size (mm²)	2.5
Minimum Metric Conductor Size (mm²)	1.5
Wire Strip Length (In.)	0.25
Wire Strip Length (mm)	6.4
Standards Met	UL Listed 587H E52164; CSA Certified LR31212
Base Material	Copper
Maximum Voltage (V)	600
Maximum Voltage (kV)	0.6
Finish/Coating	Tin-Plated
Color Code	Blue
Barrel Type	Funnel
Barrel Length (In.)	0.38
Barrel Length (mm)	9.7
Flammability Rating	UL 94 V-2/UL 94 HB
Insulation Diameter (In.)	0.16
Insulation Diameter (mm)	4.1
Maximum Operating Temperature (°C)	105
Maximum Operating Temperature (°F)	221
Maximum Wire Insulation Diameter (In.)	0.16
Maximum Wire Insulation Diameter (mm)	4.1
Minimum Wire Insulation Diameter (In.)	0.16
Minimum Wire Insulation Diameter (mm)	4.1
Sub Brand	Reel Smart
Overall Length (In.)	0.76
Overall Length (mm)	19.4
Overall Width (In.)	0.22
Overall Width (mm)	5.8
Tongue Length (In.)	0.38
Tongue Length (mm)	9.7
Tongue Thickness (In.)	0.03
Tongue Thickness (mm)	0.8
Tongue Width (In.)	0.23
Tongue Width (mm)	5.8
Packaging Type	Reel
Product Type	Ring Terminal
For Use With	(1) 600V maximum Building wires (2) 1000V maximum Insigns, Fixtures and Luminaires
Part Features	• Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time • Ring tongue design assures a secure connection in high vibration applications • Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications • Internal barrel serrations assure good wire contact and maximum tensile strength
