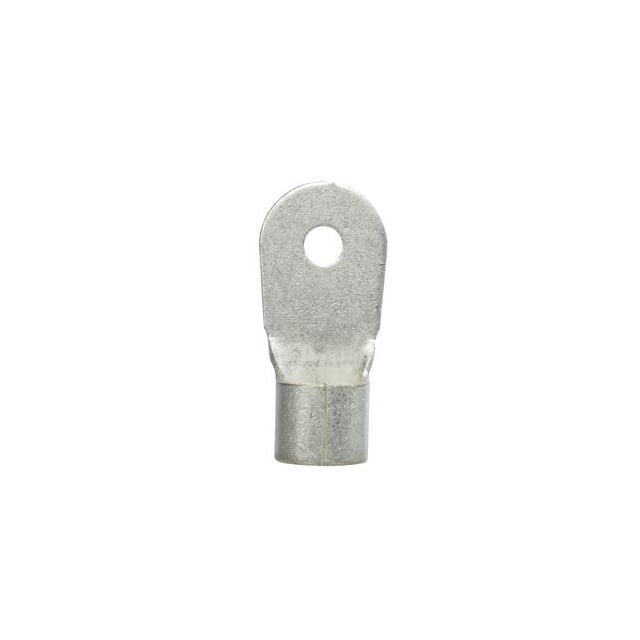

Panduit High Temperature Ring Terminal, 2 AWG, 1/4" stud size, non-insulated. [P2-14RHT6-X]; PAN678

Name: Panduit High Temperature Ring Terminal, 2 AWG, 1/4" stud size, non-insulated. [P2-14RHT6-X]; PAN678
Brand: Panduit
SKU: PAN678
Price: 70400.0 VND
Availability: InStock

by Panduit

70.400₫

(Giá chưa VAT).

Mã kho: PAN678

Mã nhà sản xuất: P2-14RHT6-X

Đơn vị tính: PC

Quy cách đóng gói: 10

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Wire Termination / Terminals Terminal Kits / Ring Terminals: Panduit P2-14RHT6-X

MÔ TẢ SẢN PHẨM

High Temperature Ring Terminal, 2 AWG, 1/4" stud size, non-insulated.

_THÔNG SỐ KỸ THUẬT:

Stud Hole Size (In.)	13/25
Stud Hole Size (mm)	13.2
Stud Size	1/4"
Insulation Material	Non-Insulated
Maximum Copper Conductor Size (AWG SOL)	#2
Maximum Copper Conductor Size (AWG STR)	#2
Maximum Copper Conductor Size (AWG)	#2
Maximum Wire Size (AWG)	#2
Minimum Copper Conductor Size (AWG SOL)	NA
Minimum Copper Conductor Size (AWG STR)	NA
Minimum Copper Conductor Size (AWG)	NA
Wire Strip Length (In.)	0.44
Wire Strip Length (mm)	11.2
Standards Met	UL Listed 587H E52164; CSA Certified LR31212
Base Material	Copper
Maximum Voltage (V)	2000
Maximum Voltage (kV)	2
Finish/Coating	Nickel-Plated
Color Code	Metallic
Barrel Length (In.)	0.56
Barrel Length (mm)	14.2
Flammability Rating	NA
Insulation Diameter (In.)	0.48
Insulation Diameter (mm)	12.2
Maximum Operating Temperature (°C)	343
Maximum Operating Temperature (°F)	650
Maximum Wire Insulation Diameter (In.)	0.48
Maximum Wire Insulation Diameter (mm)	12.2
Outer Diameter (In.)	0.48
Seam Type	Brazed
Outer Diameter (mm)	12.2
Inside Diameter (In.)	0.37
Inside Diameter (mm)	9.4
Sub Brand	Pan-Term
Overall Length (In.)	1.55
Overall Length (mm)	39.4
Overall Width (In.)	0.86
Overall Width (mm)	21.8
Tongue Length (In.)	1.12
Tongue Length (mm)	28.4
Tongue Thickness (In.)	0.06
Tongue Thickness (mm)	1.5
Tongue Width (In.)	0.48
Tongue Width (mm)	12.2
Packaging Type	Bottle
Product Type	Ring Terminal
For Use With	CT-2600, CD-2600-2
Part Features	• Ring tongue design assures a secure connection in high vibration applications • Nickel plated copper for temperatures up to 650°F (343°C) • Internal barrel serrations assure good wire contact and maximum tensile strength
