![Molex 19323-0009 1676423](http://nguyenxuong.com/cdn/shop/products/R7906970-01_b8e0a21b-c6b8-4e94-97fb-5ba35dd17417_444x212.jpg?v=1594408536)

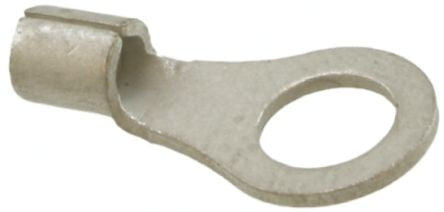

Molex VersaKrimp Series Uninsulated Crimp Ring Terminal, M5 Stud Size, 1mm² to 2.5mm² Wire Size [19323-0009]; 167-6423
by Molex
0₫
Mã kho: 1676423
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Series | VersaKrimp |
Insulation | Uninsulated |
Outer Ring Diameter | 8.69mm |
Inner Ring Diameter | 5.39mm |
Minimum Wire Size mm² | 1mm² |
Maximum Wire Size mm² | 2.5mm² |
Stud Size | M5 |
Contact Plating | Tin |
Contact Material | Copper Alloy |
Thickness | 0.79mm |
Overall Length | 14.5mm |
