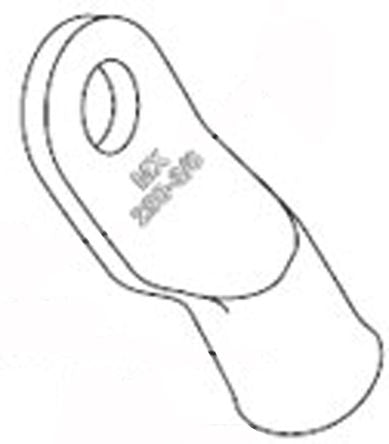

Molex 19221 Series Uninsulated Crimp Ring Terminal, M9 (3/8) Stud Size, 35mm² to 35mm² Wire Size [19221-0235]; 822-1472
by Molex
0₫
Mã kho: 8221472
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series Number | 235 |
| Insulation | Uninsulated |
| Outer Ring Diameter | 15.88mm |
| Inner Ring Diameter | 10.16mm |
| Maximum Wire Size mm² | 35mm² |
| Minimum Wire Size mm² | 35mm² |
| Maximum Wire Size AWG | 2AWG |
| Minimum Wire Size AWG | 2AWG |
| Stud Size | M9 (3/8) |
| Contact Material | Copper |
| Contact Plating | Tin |
| Thickness | 2.41mm |
| Overall Length | 41.28mm |
