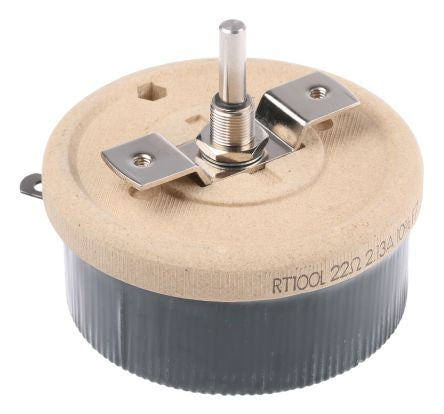

Vishay RT Series 100W Wirewound Rheostat, 22Ω, ±10% [RT100AS22R0KB]; 167-9894
by Vishay
0₫
Mã kho: 1679894
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Maximum Resistance | 22Ω |
Tolerance | ±10% |
Power Rating | 100W |
Number of Turns | 1 |
Mounting Type | Panel Mount |
Shaft Diameter | 6 mm |
Mounting Hole Diameter | 10.5mm |
Termination Style | Solder Lug |
Dimensions | 85 (Dia.) x 81mm |
Length | 81mm |
Maximum Operating Temperature | +320°C |
Minimum Operating Temperature | -55°C |
