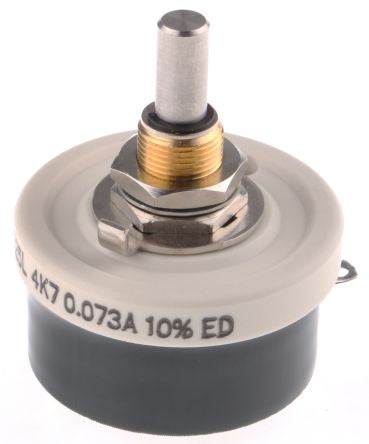

Vishay RT Series 25W Wirewound Rheostat, 4.7kΩ, ±10% [RT025AS4701KB]; 788-7823
by Vishay
0₫
Mã kho: 7887823
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Resistance | 4.7kΩ |
| Tolerance | ±10% |
| Power Rating | 25W |
| Number of Turns | 1 |
| Mounting Type | Panel Mount |
| Shaft Diameter | 6 mm |
| Mounting Hole Diameter | 10.5mm |
| Termination Style | Solder Lug |
| Dimensions | 38 (Dia.) x 50mm |
| Length | 50mm |
| Maximum Operating Temperature | +320°C |
| Minimum Operating Temperature | -55°C |
