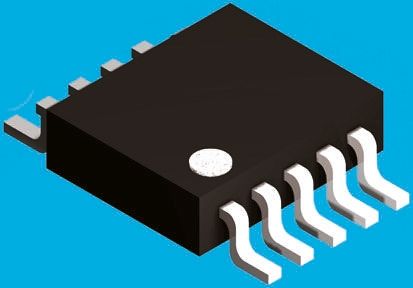

Infineon TDA5150HTMA1, RF Transceiver IC Triple Band 1.9 → 3.6 V 10-Pin TSSOP [TDA5150HTMA1]; 752-8527
by Infineon
0₫
Mã kho: 7528527
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Operating Bands | 3 |
| Maximum Operating Band 1 Frequency | 320MHz |
| Minimum Operating Band 1 Frequency | 300MHz |
| Maximum Operating Band 2 Frequency | 450MHz |
| Minimum Operating Band 2 Frequency | 425MHz |
| Minimum Operating Band 3 Frequency | 863MHz |
| Height | 0.85mm |
| Modulation Technique | ASK, FSK, GFSK |
| Maximum Operating Supply Voltage | 3.6 V |
| Minimum Operating Supply Voltage | 1.9 V |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Surface Mount |
| Maximum Operating Band 3 Frequency | 928MHz |
| Pin Count | 10 |
| Width | 3mm |
| Dimensions | 3 x 3 x 0.85mm |
| Length | 3mm |
| Package Type | TSSOP |
