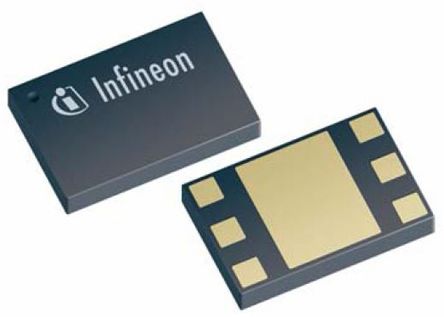

BGA715N7E6327XTSA2 Infineon, BGA715N7 RF Amplifier Low Noise, 20 dB 1.615 GHz, 7-Pin TSNP [BGA715N7E6327XTSA2]; 110-7475
by Infineon
0₫
Mã kho: 1107475
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | Low Noise |
| Typical Power Gain | 20 dB |
| Typical Noise Figure | 0.7dB |
| Number of Channels per Chip | 1 |
| Maximum Operating Frequency | 1.615 GHz |
| Mounting Type | Surface Mount |
| Package Type | TSNP |
| Pin Count | 7 |
| Dimensions | 2 x 1.3 x 0.35mm |
| Height | 0.35mm |
| Length | 2mm |
| Series | BGA715N7 |
| Maximum Operating Temperature | +85 °C |
| Maximum Operating Supply Voltage | 3.6 V |
| Width | 1.3mm |
| Minimum Operating Supply Voltage | 1.5 V |
| Minimum Operating Temperature | -40 °C |
