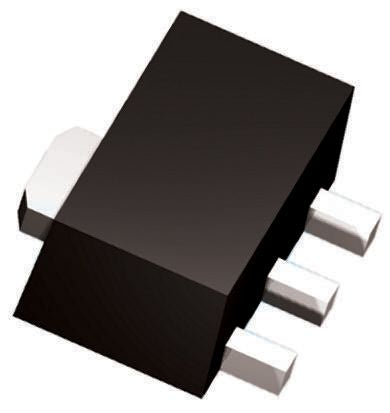

RF Amp 4GHz 5.25V 4-Pin SOT-89 [ADL5601ARKZ-R7]; 160-9927
0₫
Mã kho: 1609927
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | Linear |
| Typical Power Gain | 15.6 dB |
| Typical Output Power | 16.3dBm |
| Typical Noise Figure | 3.9dB |
| Number of Channels per Chip | 1 |
| Maximum Operating Frequency | 4 GHz |
| Mounting Type | Surface Mount |
| Package Type | SOT-89 |
| Pin Count | 3 |
| Dimensions | 4.6 x 2.6 x 1.6mm |
| Height | 1.6mm |
| Length | 4.6mm |
| Minimum Operating Supply Voltage | 4.5 V |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| Width | 2.6mm |
