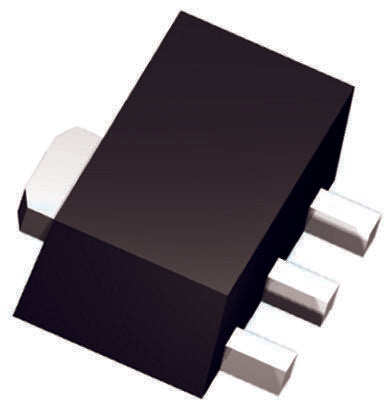

![Analog Devices ADL5544ARKZ-R7 1599293](http://nguyenxuong.com/cdn/shop/products/L287235-21_d66a4e03-ec27-410f-adc1-cf154359afa1_390x413.jpg?v=1594061636)
ADL5544ARKZ-R7 Analog Devices, RF Amplifier Gain, 14.5 dB 6 GHz, 3-Pin SOT-89 [ADL5544ARKZ-R7]; 159-9293
0₫
Mã kho: 1599293
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Amplifier Type | Gain |
Typical Power Gain | 14.5 dB |
Typical Output Power | 7dBm |
Typical Noise Figure | 5.4dB |
Number of Channels per Chip | 1 |
Maximum Operating Frequency | 6 GHz |
Mounting Type | Surface Mount |
Package Type | SOT-89 |
Pin Count | 3 |
Dimensions | 4.6 x 2.6 x 1.6mm |
Height | 1.6mm |
Length | 4.6mm |
Maximum Operating Supply Voltage | 5.25 V |
Width | 2.6mm |
Minimum Operating Temperature | -40 °C |
Maximum Operating Temperature | +105 °C |
Minimum Operating Supply Voltage | 4.75 V |
