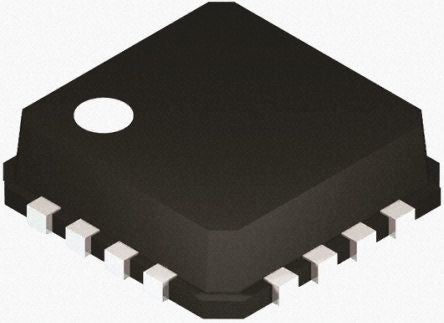

ADA4304-2ACPZ-R7 Analog Devices, RF Amplifier Low Noise, 2.8 dB 865 MHz, 16-Pin LFCSP [ADA4304-2ACPZ-R7]; 160-4530
0₫
Mã kho: 1604530
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | Low Noise |
| Typical 3dB Bandwidth | 1600MHz |
| Typical Power Gain | 2.8 dB |
| Typical Output Power | 44.5dBm |
| Typical Noise Figure | 4.6dB |
| Number of Channels per Chip | 1 |
| Maximum Operating Frequency | 865 MHz |
| Mounting Type | Surface Mount |
| Package Type | LFCSP |
| Pin Count | 16 |
| Dimensions | 3 x 3 x 0.95mm |
| Height | 0.95mm |
| Length | 3mm |
| Width | 3mm |
| Maximum Operating Supply Voltage | 5.25 V |
| Minimum Operating Supply Voltage | 4.75 V |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
