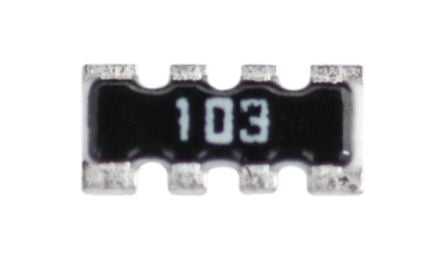

KOA CNK Series 10kΩ ±5% Isolated Array Resistor, 4 Resistors 0402 package Convex SMT [CN1E4KTTD103J]; 172-9214
by KOA
0₫
Mã kho: 1729214
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resistance | 10 kΩ |
| Number of Resistors | 4 |
| Package/Case | 0402 (1005M) |
| Termination Style | Convex SMT |
| Tolerance | ±5% |
| Automotive Standard | AEC-Q200 |
| Power Rating per Resistor | 0.063W |
| Circuit Designator | ISOL |
| Length | 2mm |
| Depth | 1mm |
| Height | 0.35mm |
| Dimensions | 2 x 1 x 0.35mm |
| Series | CNK |
| Number of Terminals | 8 |
| Minimum Operating Temperature | -55°C |
| Temperature Coefficient | ±200ppm/°C |
| Maximum Operating Temperature | +155°C |
