![Bourns 4608X-102-101LF 1673280](http://nguyenxuong.com/cdn/shop/products/R168566-01_91fc83d5-7a9f-4644-b9f2-74c9e1aa266f_444x346.jpg?v=1594325791)

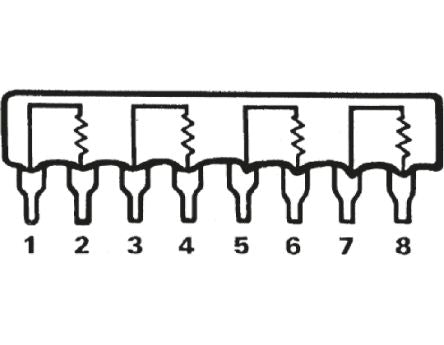

Bourns Isolated Resistor Array 100Ω ±2% 4 Resistors, 1W Total, SIP package 4600X Through Hole [4608X-102-101LF]; 167-3280
by Bourns
0₫
Mã kho: 1673280
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Series | 4600X |
Resistance | 100 Ω |
Number of Resistors | 4 |
Tolerance | ±2% |
Power Rating | 1W |
Power Rating per Resistor | 0.3W |
Package/Case | SIP |
Case Style | Conformal |
Circuit Designator | ISOL |
Temperature Coefficient | ±100ppm/°C |
Dimensions | 2.49 x 5.08 x 20.27mm |
Termination Style | Through Hole |
Depth | 2.49mm |
Height | 5.08mm |
Length | 20.27mm |
Maximum Operating Temperature | +125°C |
Minimum Operating Temperature | -55°C |
Number of Terminals | 8 |
