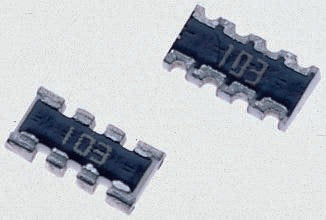

Bourns CAY16 Series 10kΩ ±1% Isolated SMT Resistor Array, 4 Resistors, 0.25W total 1206 (3216M) package Convex [CAY16-1002F4LF]; 740-8767
by Bourns
0₫
Mã kho: 7408767
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Resistance | 10 kΩ |
| Number of Resistors | 4 |
| Package/Case | 1206 (3216M) |
| Power Rating | 0.25W |
| Termination Style | Convex |
| Tolerance | ±1% |
| Case Style | Moulded |
| Power Rating per Resistor | 0.062W |
| Circuit Designator | ISOL |
| Length | 3.2mm |
| Depth | 1.6mm |
| Height | 0.5mm |
| Dimensions | 3.2 x 1.6 x 0.5mm |
| Series | CAY16 |
| Number of Terminals | 8 |
| Temperature Coefficient | ±200ppm/°C |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +125°C |
