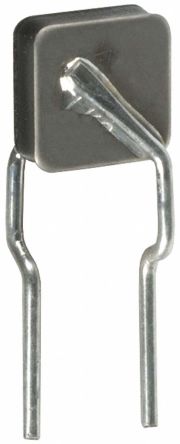

Littelfuse 0.12A Hold current, Radial Resettable Wire Ended Fuses, 60V dc [TRF250-120U]; 164-8237
by Littelfuse
0₫
Mã kho: 1648237
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Lead Orientation | Radial |
| Time to Trip | 1s |
| Hold Current | 0.12 A |
| Voltage Rating | 60 V dc |
| Maximum Current | 0.125 |
| Minimum Resistance | 6Ω |
| Maximum Resistance | 10Ω |
| Power Dissipation | 0.8W |
| Body Height | 10mm |
| Body Length | 6mm |
| Body Width | 3.8mm |
| Wire Pitch | 5mm |
| Wire Length | 4.7mm |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -40°C |
