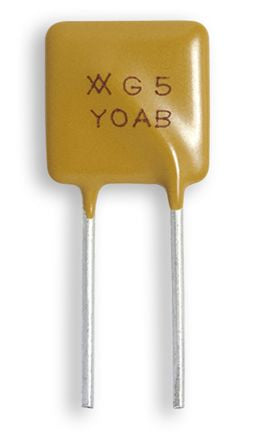

Littelfuse 5A Hold current, Radial Resettable Wire Ended Fuses, 16V dc [RF3233-000]; 174-0824
by Littelfuse
0₫
Mã kho: 1740824
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Lead Orientation | Radial |
Trip Current | 8.5A |
Time to Trip | 2s |
Hold Current | 0.208333333333333 |
Voltage Rating | 16 V dc |
Maximum Current | 100 A dc |
Minimum Resistance | 0.01Ω |
Maximum Resistance | 30mΩ |
Power Dissipation | 2.6W |
Body Height | 14.3mm |
Body Length | 10.4mm |
Body Width | 3mm |
Wire Pitch | 5.8mm |
Wire Length | 7.6mm |
Maximum Operating Temperature | +85°C |
Minimum Operating Temperature | -40°C |
