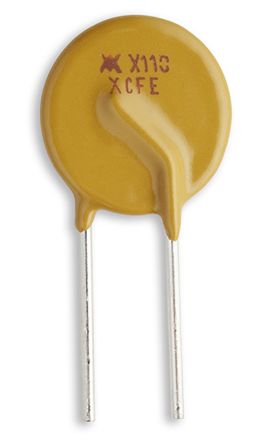

Littelfuse 1.1A Hold current, Radial Resettable Wire Ended Fuses, 72 V dc, 72 V ac [RF2623-000]; 174-0863
by Littelfuse
0₫
Mã kho: 1740863
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Lead Orientation | Radial |
Trip Current | 2.2A |
Time to Trip | 8.2s |
Hold Current | 1.1 A |
Voltage Rating | 72 V ac, 72 V dc |
Maximum Current | 40 A |
Minimum Resistance | 0.15Ω |
Maximum Resistance | 380mΩ |
Power Dissipation | 1.5W |
Body Height | 17.5mm |
Body Length | 12.8mm |
Body Width | 3mm |
Wire Pitch | 5.8mm |
Wire Length | 7.6mm |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +85°C |
