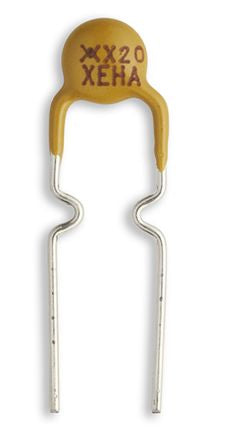

Littelfuse 0.2A Hold current, Radial Resettable Wire Ended Fuses, 72 V dc, 72 V ac [RF2564-000]; 174-0443
by Littelfuse
0₫
Mã kho: 1740443
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Lead Orientation | Radial |
Trip Current | 400mA |
Time to Trip | 2.2s |
Hold Current | 0.2 A |
Voltage Rating | 72 V ac, 72 V dc |
Maximum Current | 40 A |
Minimum Resistance | 1.83Ω |
Maximum Resistance | 4.4Ω |
Power Dissipation | 0.41W |
Body Height | 11.7mm |
Body Length | 7.4mm |
Body Width | 3mm |
Wire Pitch | 5.8mm |
Wire Length | 7.6mm |
Maximum Operating Temperature | +85°C |
Minimum Operating Temperature | -40°C |
