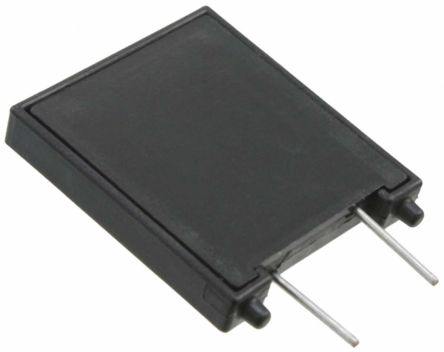

Littelfuse 1.25A Hold current, Radial Resettable Wire Ended Fuses, 240V ac [LVB125]; 164-8198
by Littelfuse
0₫
Mã kho: 1648198
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Lead Orientation | Radial |
Trip Current | 2.5A |
Time to Trip | 5s |
Hold Current | 1.25 A |
Voltage Rating | 240 V ac |
Minimum Resistance | 0.152Ω |
Maximum Resistance | 292mΩ |
Power Dissipation | 4W |
Body Height | 27.2mm |
Body Length | 25.2mm |
Body Width | 4.6mm |
Wire Pitch | 11.4mm |
Wire Length | 5.1mm |
Maximum Operating Temperature | +85°C |
Minimum Operating Temperature | -40°C |
