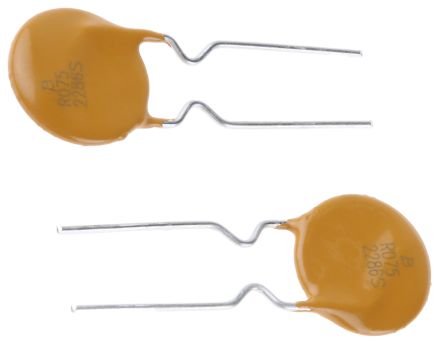

Bourns 0.75A Hold current, Radial Leaded PCB Mount Resettable Fuse, 60V [MF-R075]; 647-8516
by Bourns
0₫
Mã kho: 6478516
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Lead Orientation | Radial |
Trip Current | 1.5A |
Time to Trip | 6.3s |
Hold Current | 0.75 A |
Voltage Rating | 60 V |
Maximum Current | 40 A |
Minimum Resistance | 0.18Ω |
Maximum Resistance | 600mΩ |
Power Dissipation | 0.9W |
Body Height | 16mm |
Body Length | 10.4mm |
Body Width | 3.1mm |
Wire Pitch | 5.1mm |
Wire Length | 7.6mm |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +85°C |
Wire Diameter | 0.51mm |
