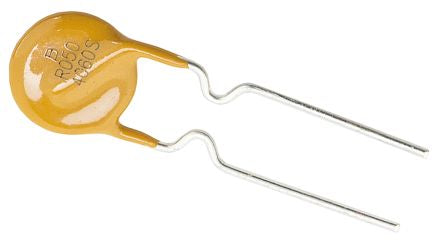

Bourns 0.5A Hold current, Radial Leaded PCB Mount Resettable Fuse, 60V [MF-R050]; 647-8493
by Bourns
0₫
Mã kho: 6478493
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Lead Orientation | Radial |
| Trip Current | 1A |
| Time to Trip | 4s |
| Hold Current | 0.5 A |
| Voltage Rating | 60 V |
| Maximum Current | 40 A |
| Minimum Resistance | 0.41Ω |
| Maximum Resistance | 1.17Ω |
| Power Dissipation | 0.75W |
| Body Height | 13.7mm |
| Body Length | 7.9mm |
| Body Width | 3.1mm |
| Wire Pitch | 5.1mm |
| Wire Length | 7.6mm |
| Wire Diameter | 0.51mm |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
