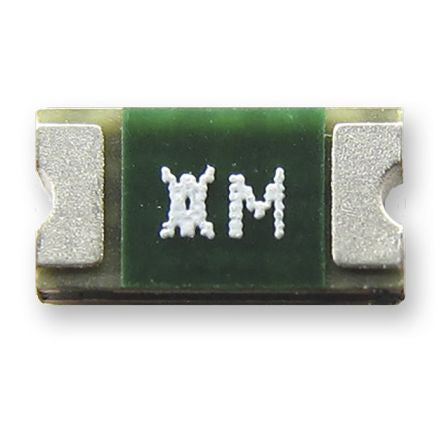

Littelfuse 0.5A Resettable Surface Mount Fuse, 13.2V dc [RF1347-000]; 174-0869
by Littelfuse
0₫
Mã kho: 1740869
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Trip Current | 1.1A |
| Voltage Rating | 13.2 V dc |
| Time to Trip | 0.1s |
| Hold Current | 0.5 A |
| Maximum Current | 100 A |
| Length | 3.4mm |
| Height | 0.74mm |
| Width | 1.8mm |
| Minimum Resistance | 0.2Ω |
| Maximum Resistance | 750mΩ |
| Power Dissipation | 0.8W |
| Minimum Operating Temperature | -40°C |
| Package Size | 1206 |
| Maximum Operating Temperature | +85°C |
| Dimensions | 3.4 x 1.8 x 0.74mm |
| Body Material | Poly |
| Operating Temperature Range | -40 → +85 °C |
| Fuse Speed | F |
| Series | NANOSMDC |
