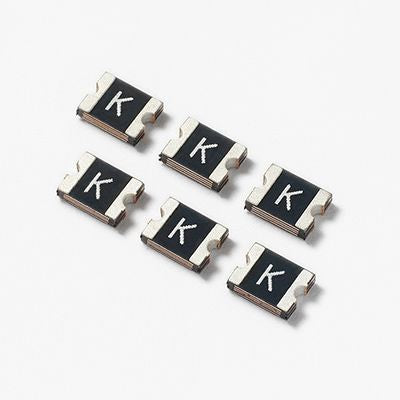

Littelfuse 0.75A Resettable Surface Mount Fuse, 24V dc [1210L075/24PR]; 174-0764
by Littelfuse
0₫
Mã kho: 1740764
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Trip Current | 1.5A |
| Voltage Rating | 24 V dc |
| Time to Trip | 0.1s |
| Hold Current | 0.75 A |
| Maximum Current | 100 A |
| Length | 3.43mm |
| Height | 1.8mm |
| Width | 2.8mm |
| Terminal Material | Tin Plated Copper |
| Minimum Resistance | 0.13Ω |
| Maximum Resistance | 400mΩ |
| Power Dissipation | 0.6W |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Fuse Speed | F |
| Series | 1210L |
| Operating Temperature Range | -40 → +85 °C |
| Body Material | Polymer |
| Dimensions | 3.43 x 2.8 x 1.8mm |
