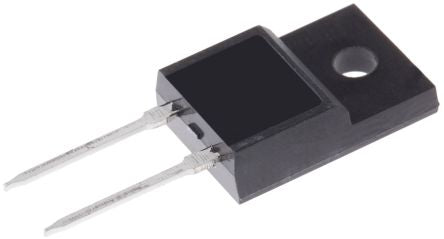

Vishay 600V 15A, Diode, 2-Pin TO-220FP VS-ETU1506FP-M3 [VS-ETU1506FP-M3]; 145-1637
by Vishay
0₫
Mã kho: 1451637
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Mounting Type | Through Hole |
| Package Type | TO-220FP |
| Maximum Continuous Forward Current | 15A |
| Peak Reverse Repetitive Voltage | 600V |
| Diode Configuration | Single |
| Diode Type | Silicon Junction |
| Pin Count | 2 |
| Maximum Forward Voltage Drop | 1.9V |
| Number of Elements per Chip | 1 |
| Diode Technology | Silicon Junction |
| Peak Reverse Recovery Time | 87ns |
| Peak Non-Repetitive Forward Surge Current | 160A |
