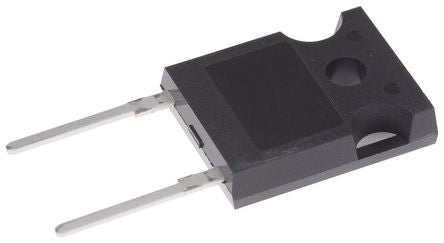

Vishay 1200V 60A, Diode, 2-Pin TO-247AC VS-60EPF12-M3 [VS-60EPF12-M3]; 145-1603
by Vishay
0₫
Mã kho: 1451603
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Mounting Type | Through Hole |
| Package Type | TO-247AC |
| Maximum Continuous Forward Current | 60A |
| Peak Reverse Repetitive Voltage | 1200V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Diode Type | Silicon Junction |
| Pin Count | 2 |
| Maximum Forward Voltage Drop | 1.4V |
| Number of Elements per Chip | 1 |
| Diode Technology | Silicon Junction |
| Peak Reverse Recovery Time | 480ns |
| Peak Non-Repetitive Forward Surge Current | 700A |
