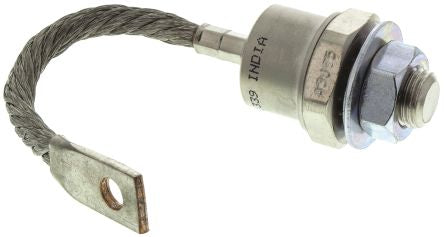

Vishay 400V 150A, Diode, 2-Pin DO-30 VS-45L40 [VS-45L40]; 169-5916
by Vishay
0₫
Mã kho: 1695916
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Mounting Type | Thread Mount |
| Package Type | DO-30 |
| Maximum Continuous Forward Current | 150A |
| Peak Reverse Repetitive Voltage | 400V |
| Diode Configuration | Stud Cathode |
| Rectifier Type | Switching |
| Diode Type | Silicon Junction |
| Pin Count | 2 |
| Maximum Forward Voltage Drop | 1.33V |
| Number of Elements per Chip | 1 |
| Diode Technology | Silicon Junction |
| Peak Non-Repetitive Forward Surge Current | 3.7kA |
