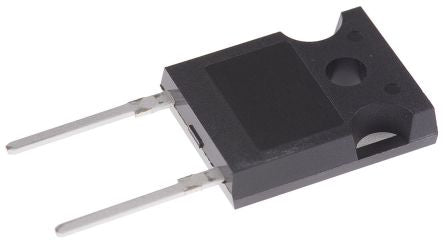

Vishay 200V 40A, Diode, 2-Pin TO-247AC VS-40EPF02-M3 [VS-40EPF02-M3]; 145-1576
by Vishay
0₫
Mã kho: 1451576
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Mounting Type | Through Hole |
| Package Type | TO-247AC |
| Maximum Continuous Forward Current | 40A |
| Peak Reverse Repetitive Voltage | 200V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Diode Type | Silicon Junction |
| Pin Count | 2 |
| Maximum Forward Voltage Drop | 1.25V |
| Number of Elements per Chip | 1 |
| Diode Technology | Silicon Junction |
| Peak Reverse Recovery Time | 180ns |
| Peak Non-Repetitive Forward Surge Current | 475A |
