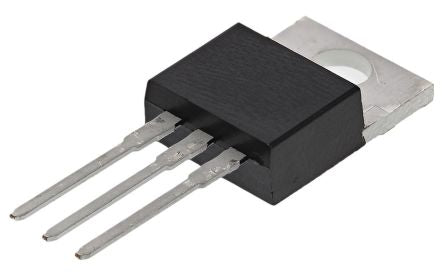

Vishay 100V 30A, Dual Diode, 3-Pin TO-220AB V30100C-E3/4W [V30100C-E3/4W]; 818-4320
by Vishay
0₫
Mã kho: 8184320
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Mounting Type | Through Hole |
| Package Type | TO-220AB |
| Maximum Continuous Forward Current | 30A |
| Peak Reverse Repetitive Voltage | 100V |
| Diode Configuration | Common Cathode |
| Diode Type | Schottky |
| Pin Count | 3 |
| Maximum Forward Voltage Drop | 800mV |
| Number of Elements per Chip | 2 |
| Diode Technology | Schottky |
| Peak Non-Repetitive Forward Surge Current | 160A |
